Mobile Crusher



Mobile Primary Crusher



Mobile Secondary Crusher



Mobile Secondary Crusher



Mobile Sand Maker



Combination Mobile Crusher



Combination Mobile Crusher

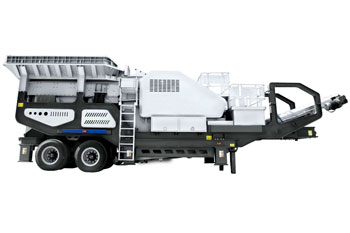

Technical Parameter:

Parameter / Model LSY57E LSY69E LSY75E
Hopper Integral steel structure Integral steel structure Integral steel structure
Vibrating Feeder ZSW3090 ZSW3896 ZSW4211
Jaw Crusher PE500×750 PE600×900 PE750×1060
Max Feeding Size(mm) 425 500 630
CSS min-max
(mm)		 50-100 65-180 80-180
Capacity(TPH) 45-110 60-150 90-210
Qty of Axle 2 2 3

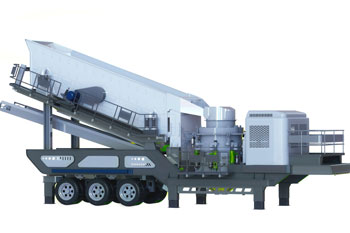

Mobile Cone Crusher with Screen

Parameter / Model   LSY1000X   LSY1200X   LSY1300X   LSY1400X
Vibrating Screen 3YK1548 3YK1848 3YK1860 3YK2160
Cone Crusher LSX1000 LSX1200 LSX1300 LSX1400
Max Feeding Size(mm) 160 180 200 235
CSS min-max
(mm)		 13-38 13-38 16-51 19-45
Capacity(TPH) 50-100 100-130 120-180 160-220
Qty of Axle 2 2 3 3

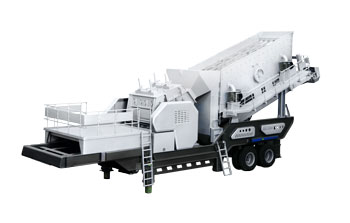

Mobile Impact Crusher with Screen

Model LSY1010F LSY1210F LSY1214F LSY1315F
Vibrating Screen 3YK1548 3YK1848 3YK1860 3YK2160
Impact Crusher PF1010 PF1210 PF1214 PF1315
Max Feeding Size(mm) 350 350 350 500
Capacity (TPH) 50-90 70-130 100-180 130-250
Qty of Axle 2 2 3 3

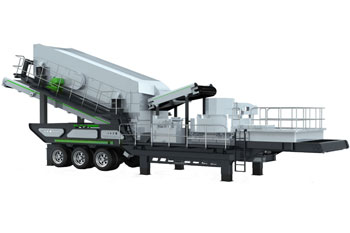

Mobile Sand Maker

Model / Parameter   LSY8522   LSY9532   LSY1145
Vibrating Screen 3YK1848 3YK1860 3YK2160
Sand Making Machine 8522 9532 1145
Max Feeding Size(mm) 40 45 50
Capacity(TPH) 120-190 180-240 240-350
Qty of Axle 2 2 3

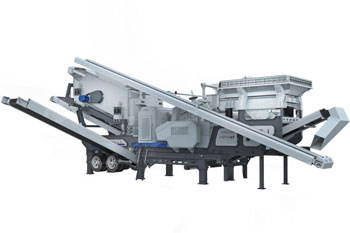

3 in 1 Mobile Crusher

Parameter / Model   LSY100FW   LSY150FW   LSY200FW
Vibrating Feeder ZSW3090 ZSW3896 ZSW4211
Jaw Crusher PFW1010 PFW1214 PFW1315
Screen 3YK1848 3YK1860 3YK2160
Max Feeding Size(mm) 500 600 700
Capacity(TPH) 70-100 90-150 130-200
Qty of Axle 3 3 3

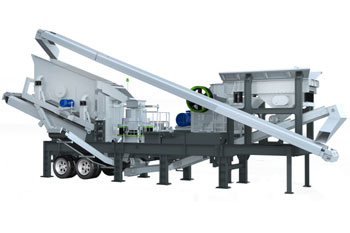

4 in 1 Mobile Crusher

Model LSY23PY9G39E46 LSY54LVX10G39E57
Jaw Crusher PE400x600 PE500x750
Cone Crusher PY900 LSX1000
Vibrating Feeder GZD300x80 GZD300x80
Belt Conveyor B500x5 B650x5
Vibrating Screen 3YK1237 3YK1548
Qty of Axle 3 3
