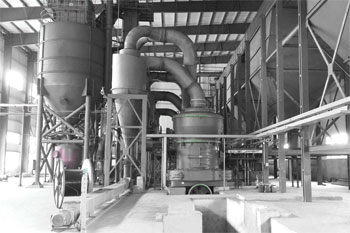

European type Grinding Mill has absorbed the latest European grinding concepts, and realized the technological revolution of industrial grinding mills, become the best replacement product for traditional Raymond mill, pendulum mill and ball mill.
Advanced Transmission
Super power, bevel gear integral transmission
Thin-oil Lubrication of Transmission System
The main shaft driving system and blower driving system are both lubricated by thin oil with as long as 4 months' oil change interval, low cost and low frequency of maintenance.
Energy Saving and Environmental Protection
Environmental protection certificated of industrial products and meet the latest national environmental protection standards.
| Specification | LSO110 | LSO138 | LSO158 | LSO175 | LSO198 | LSO218 | |
| Qty of Rollers(pcs) | 4 | 4 | 4 | 4 | 4 | 4 | |
| Inner Diameter of Ring (mm) | ф1100 | ф1380 | ф1550 | ф1750 | ф1950 | ф2150 | |
| Inner Diameter of Roller | 360 | 460 | 510 | 580 | 640 | 640 | |
| Main Mill Rotating Speed(r/min) | 110-120 | 86-100 | 88 | 65-85 | 60-75 | 55-66 | |
| Input Size (mm) | <25 | <30 | <30 | <35 | <35 | <40 | |
| Output Size | Mesh | 10-325, the finest 400 | |||||
| Capacity（t/h) | 3-10 | 6-20 | 13 | 10-35 | 18 | 20-50 | |
| Overall Dimension（mm) | 6186×8041×8640 | 7262×10010×10010 | 10200×9100×10100 | 10171×10023×9916 | 12500×9500×11400 | 14300×11153×10351 | |
| Main Mill Weight(t) | 15 | 25.5 | 39 | 47 | 64 | 96 | |
| Name | Item | LSM110 | LSM138 | LSM158 | LSM175 | LSM198 | LSM218 | |
| Motor of Main Mill | Power (KW) | 55 | 90 | 132 | 160 | 220 | 280 | |
| Frequency Motor of classifier | Power(KW) | 11 | 18.5 | 22 | 30 | 37 | 55 | |
| Motor of Blower | Power(KW) | 55 | 110 | 132 | 200 | 250 | 315 | |
| Auxiliary Parts | Crusher | Model of crusher | PE250×400 | PE250×750 | PE250×750 | PE250×750 | PC1010 | PC1010 |
| Power(KW) | 15 | 22 | 22 | 22 | 110 | 110 | ||
| Bucket Elevator | Model of elevator | TH220×8.13m | TH315×9.5m | TH315×9.85m | TH315×10.25m | TB315×12.43m | TB315×12.43m | |
| Power(KW) | 3 | 4 | 4 | 4 | 11 | 11 | ||
| Feeder | Model | GZ2F | GZ3F | GZ3F | GZ4F | GZ5F | GZ5F | |
| Power(KW) | 0.15 | 0.2 | 0.2 | 0.45 | 0.65 | 0.65 | ||
| Hopper | Volume(m³) | 1.5 | 2.5 | 3.3 | 4.5 | 18.4 | 18.4 | |
